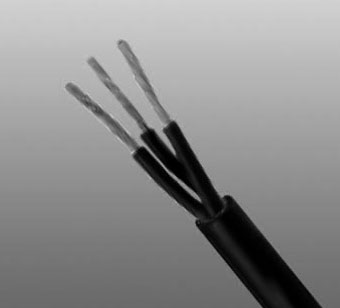

0.45/0.75KV Multicore Standard Wall Traction Cables
Application
Multicore power and control cable designed for protected, fi xed installation inside and outside railway vehicles for connecting fi xed and moving parts.
Standards
● BS 6853 -1a
● DIN 5510-1 1-4
● NFF 16-101 F0
Construction
Conductors
Circular Class 5 stranded plain or tinned copper to BS EN 60228: 2005 / BS 6360.
Insulation
Electron beam crosslinkable standard wall LSZH compound.
Outer Sheath
Electron beam crosslinkable LSZH compound.
Optional
FRA-SW-0.75M-OS (Screened)
FRA-SW-0.75M-FR (Fire resistant)
Electrical Characteristics at 20℃
Nominal Conductor Cross Section |
mm² |
1.0 |
1.5 |
2.5 |
4.0 |
6.0 |
10 |
16 |
Maximum Conductor Resistance |
Ω/km |
20 |
13.7 |
8.21 |
5.09 |
3.39 |
1.95 |
1.24 |
Voltage Rating |
KV |
0.45/0.75 |
Mechanical and Thermal Properties
Minimum Bending Radius:3×OD (OD<12mm); 4×OD (OD>12mm)
Temperature Range:-40℃ to +120℃ |
